How to Choose the Right Forged Gears Blanks for Your Machinery Needs?

Selecting the optimal forged gear blank is a foundational engineering decision that directly dictates the longevity, reliability, and efficiency of your machinery. This choice moves beyond simple procurement into the realm of strategic asset management. An incorrectly specified blank can lead to premature failure, unplanned downtime, and significant cost overruns, whereas the right selection ensures peak performance under demanding conditions. This comprehensive guide will navigate the critical technical and operational parameters you must evaluate, transforming a complex decision into a clear, methodical process. We will explore material science, manufacturing nuances, geometric considerations, and the pivotal balance between performance and economics, empowering you to specify with confidence.

The Foundational Importance of Material Selection

The alloy composition of your forged gear blank is the primary determinant of its ultimate capability. This choice sets the ceiling for strength, toughness, wear resistance, and response to heat treatment. Different operating environments—from the consistent load of a conveyor to the shock impulses in a rock crusher—demand tailored material solutions. For instance, a cost-effective forged gear blanks for agricultural equipment might prioritize good machinability and through-hardening capability in a medium-carbon steel, accepting a certain trade-off in extreme wear resistance for the sake of overall project economy. Conversely, applications involving high cyclical stresses require alloys engineered for superior fatigue life. The material must also be compatible with intended secondary processes; a blank destined for case hardening must be of a grade that allows for deep carbon penetration without becoming brittle. Understanding this interplay between raw material properties and finished performance is the first and most crucial step in the selection journey.

Common Alloy Systems and Their Operational Domains

Navigating the landscape of alloy steels requires understanding their characteristic strengths. Carbon steels, such as the 10xx and 11xx series, provide a solid balance of strength and affordability, often used in less severe service conditions. Alloy steels like 4140 or 4340 introduce elements like chromium and molybdenum, enhancing hardenability, strength, and toughness, making them staples in heavy-duty industrial and mobile equipment. Case-hardening steels, including 8620 and 9310, are formulated to develop an exceptionally hard, wear-resistant surface while maintaining a ductile, shock-absorbing core after carburizing. This makes them indispensable for durable forged gear blanks for heavy-duty truck transmissions, where surface contact stresses are immense. The selection is not merely about picking the "strongest" material, but about identifying the alloy whose property profile aligns perfectly with the specific stress state, environmental exposure, and required safety factors of your application.

Material Selection Comparative Analysis

To illustrate the practical differences, consider the following comparison. The key is to match the material's inherent advantages with the operational demands. For example, where weight is a minor concern but impact resistance is paramount, a tougher alloy is justified even at higher cost. In high-volume production where every second of machining time counts, a material with superior machinability might lower the total part cost despite a higher raw material price.

Decoding the Forging Process: Quality from the Inside Out

The term "forged" encompasses several manufacturing methodologies, each imparting a different level of quality, grain structure, and economic value. The process is not just about shaping metal; it's about refining its internal architecture. During forging, the metal's dendritic cast structure is broken up and the grain flow is oriented along the lines of greatest stress, creating a continuous, unbroken grain pattern that follows the contour of the part. This dramatically increases strength, particularly in terms of fatigue life and impact resistance, compared to a part machined from bar stock where the grain flow is cut through. The choice of forging process directly influences the blank's integrity, the amount of subsequent machining required, and its final cost.

Open-Die vs. Closed-Die Forging: A Strategic Choice

Open-die forging involves deforming the workpiece between flat or simple-shaped dies with repeated strokes. It is highly flexible and suitable for very large components or low-volume production. However, it produces a rough shape that requires significant machining to achieve final dimensions, and the grain flow control is less precise. Closed-die forging, also called impression-die forging, confines the metal within a set of dies that contain a precut profile of the desired part. This process yields a blank very close to the final net shape, with superior dimensional accuracy and optimized, continuous grain flow. It is the preferred method for high volume forged gear blanks automotive industry applications, where consistency, minimal waste (high material yield), and excellent mechanical properties are paramount. The initial die cost is high, but it is amortized over large production runs, making it economically advantageous.

The Critical Role of Heat Treatment Post-Forging

As-forged components often possess non-uniform grain structures and residual stresses from the rapid cooling after forging. Therefore, a normalizing heat treatment is almost always applied immediately after forging. Normalizing involves heating the blanks to an austenitizing temperature and then air-cooling them. This process refines the grain structure, improves machinability by producing a more uniform hardness, and relieves internal stresses. For the end-user, specifying that blanks are supplied in a normalized condition is essential. It ensures consistent machining performance and provides a stable, homogeneous foundation for any final heat treatment (like carburizing or induction hardening) that will be applied after the gear teeth are cut. Blanks that skip this step can lead to unpredictable machining behavior, dimensional instability during final heat treat, and ultimately, compromised gear performance.

Specifying Geometry and Tolerances for Manufacturing Efficiency

The physical design of the forged blank is a bridge between the forging process and the final machining operations. A well-designed blank minimizes material waste, reduces machining time and tool wear, and helps control costs. This involves specifying not just the major dimensions, but also allowances, draft angles, fillet radii, and tolerances. For example, asking for a blank that is 1-2 millimeters per side over the final gear tooth root diameter can drastically reduce the amount of metal a hob or broach must remove. Conversely, a blank that is too "skinny" risks exposing forged surfaces in the final part, which may have decarburization or scale that can compromise fatigue strength. The goal is to provide the machinist with a clean, consistent, and optimally sized starting point.

Key Geometric Parameters to Define

• Stock Allowance: The intentional extra material left on critical surfaces for machining. Sufficient allowance must be provided to clean up all forged surfaces and ensure sound metal in the final part.
• Draft Angles: Taper applied to vertical surfaces to allow the part to be ejected from the forging dies. Typical draft angles range from 3 to 7 degrees. Specifying the minimum necessary draft reduces machining stock.
• Fillet and Corner Radii: Generous radii at internal corners are crucial in forgings to improve metal flow during forming and to reduce stress concentrations in the final part. Sharp corners are forging defects and can be initiation points for cracks.
• Parting Line Location: The plane where the two forging dies meet. Its location should be specified to minimize flash on critical functional surfaces and to control grain flow orientation relative to applied loads.

Navigating the Supplier Landscape: Capabilities and Certifications

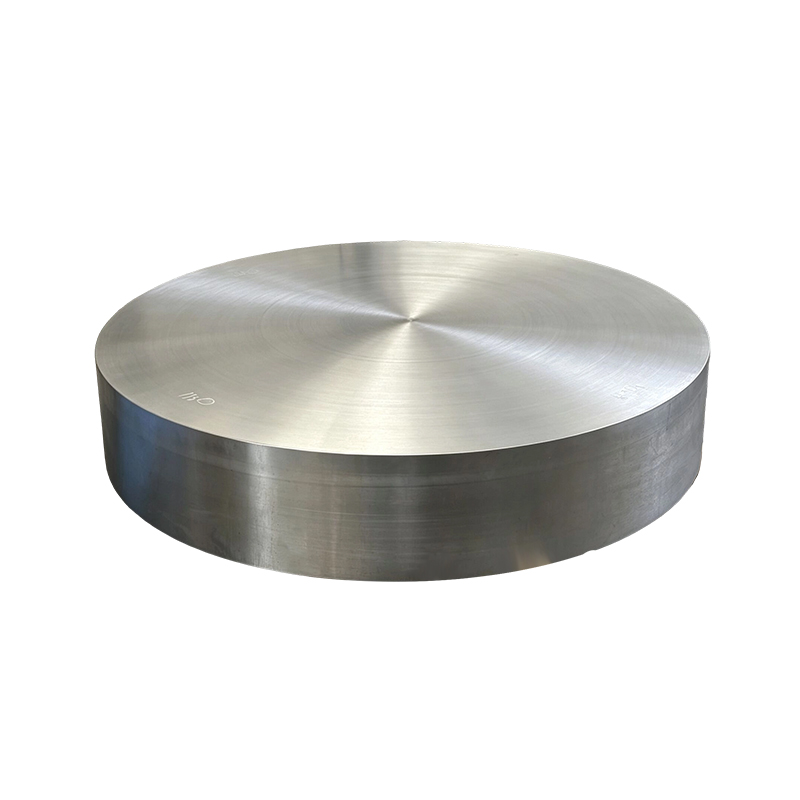

Choosing a supplier is as critical as specifying the material and geometry. The supplier's technical capabilities, quality management systems, and metallurgical expertise will determine whether your specifications are met consistently. For critical applications, such as sourcing custom forged gear blanks for mining equipment, you must partner with a forger experienced in large, complex shapes and the stringent material requirements of the sector. Key due diligence points include evaluating their press capacity (tonnage), in-house heat treating facilities, non-destructive testing (NDT) capabilities like ultrasonic testing, and their material traceability systems. A reputable forger should be able to provide a detailed process control plan and comply with relevant international standards.

Essential Certifications and Quality Documents

Always require and review critical documentation. A certified material test report (CMTR or MTR) is non-negotiable, as it verifies the chemical composition and mechanical properties of the heat of steel used for your blanks. For highly stressed components, you may also require:

1. Ultrasonic Test Reports: To verify internal soundness and absence of significant discontinuities like voids or inclusions.
2. Hardness Survey Reports: To ensure consistent hardness (and thus machinability) across the entire batch of normalized blanks.
3. First Article Inspection (FAI) Reports: For new parts, a comprehensive dimensional verification of initial samples against your drawing.
4. Heat Treat Charts: Documentation proving the normalizing cycle (time, temperature) was correctly executed.

A supplier's willingness and ability to provide this level of documentation is a strong indicator of their commitment to quality and their suitability for producing forged gear blanks with precise heat treatment requirements.

Balancing Performance Requirements with Total Cost of Ownership

The final selection is an optimization exercise that balances upfront cost with long-term value. The cheapest blank per kilogram may lead to higher machining costs, more frequent failures, and greater total lifecycle expense. The Total Cost of Ownership (TCO) model should factor in:

• Blank Purchase Price: The direct cost of the forged component.
• Machining Cost: Directly influenced by blank material machinability, hardness consistency, and how close the blank is to net shape.
• Scrap and Rework Risk: A higher-quality, more consistent blank minimizes these costly uncertainties.
• In-Service Performance Cost: This includes the cost of downtime, repair, and lost production due to a gear failure. A more durable blank, while potentially more expensive initially, provides immense value here.

For instance, investing in a higher-grade alloy and a closed-die forging for a critical gear in a 24/7 production line is almost always justified by the dramatic reduction in unplanned downtime risk. The decision framework shifts from "What is the cost?" to "What is the value of reliability?" By systematically evaluating materials, processes, geometry, supplier capability, and TCO, you transform the selection of a forged gear blank from a routine purchase into a strategic engineering decision that safeguards your machinery's performance for years to come.
